Full-width weft insertion warp knitting machine

Feature Of Full-width Weft Insertion Warp Knitting Machine

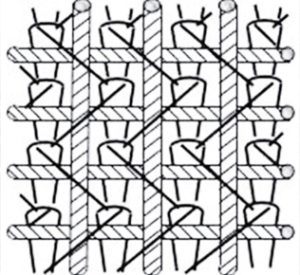

High performance warp knitting machine with parallel weft laying system. Weft corresponds to coil horizontal row.

Application Of Weft Insertion Warp Knitting Machine

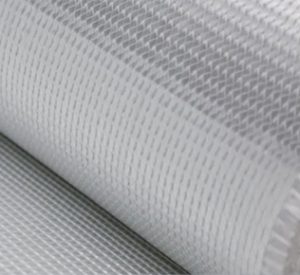

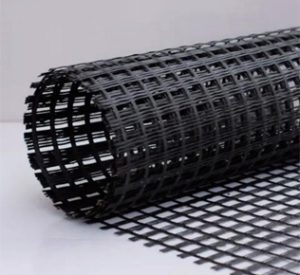

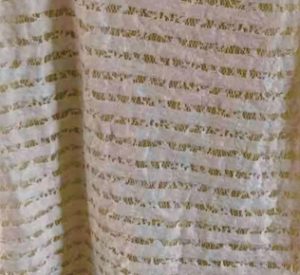

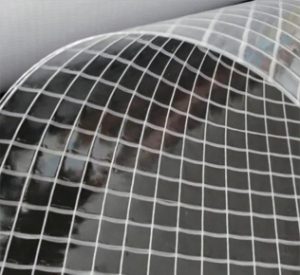

The fabrics produced are mainly interlinings, light box fabrics, geotextile, glass fiber and other engineering fabrics, mainly used in clothing, construction and bridge repairing, advertising, reinforcement materials, coating substrate and geotechnical technology and other fields.

Technical Data Of Warp Knitting Machine

needle type: compound needle, weft push needle

gauge: E5, E6, E18, E24

number of bars: 2 guide bars( 1 guide bar + 1 weft knitting bar, 2 guide bar + 1 weft knitting bar)

working width: 245″, 268″

weft laying system: a weft laying trolley that can carry 30 bobbins

Max. speed: 1500rpm
